產品特性:

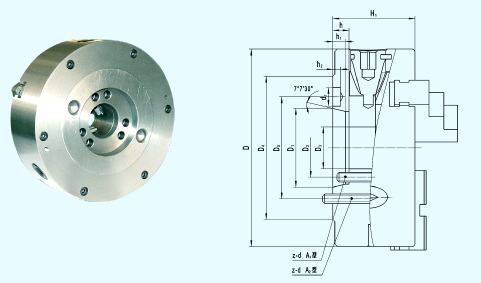

●A型：穿通螺釘連接 Form A Mounting from Front
產品詳情
●A1型（內圈螺釘連接）Form A1(Use Inner Tapped Holes )
|
型號規格
Model
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
h
|
h1
|
h2
|
d1
|
z-d
|
|
200/A15 200A/A15
|
200
|
82.563
|
61.9
|
40
|
133
|
104.8
|
84
|
14.288
|
12
|
6.5
|
16.3
|
3-M10
|
|
250/A16 250A/A16
|
252
|
106.375
|
82.6
|
55
|
165
|
133.4
|
93
|
15.875
|
13
|
6.5
|
19.5
|
6-M12
|
|
315/A16 315A/A16
|
315
|
106.375
|
82.6
|
55
|
165
|
133.4
|
106
|
15.875
|
13
|
6.5
|
19.5
|
6-M12
|
|
315/A18 315A/A18
|
315
|
139.719
|
111.1
|
78
|
210
|
171.4
|
106
|
17.462
|
14
|
8
|
24.2
|
6-M16
|
●A2型（外圈螺釘連接）Form A2(Outer Tapped Holes)
|
型號規格
Model
|
D
|
D1
|
D3sub>
|
D4
|
D5
|
H1
|
h1
|
h2
|
d1
|
z-d
|
|
200/A24 200A/A24
|
200
|
63.513
|
60
|
108
|
82.6
|
86
|
10
|
6.5
|
14.7
|
3-M10
|
|
