產(chǎn)品特性:
■特點(diǎn)：
☆短圓錐連接形式。
☆鋼盤(pán)體，適用于較高轉速。
☆卡爪型式有整體爪和A型分離爪（符合ISO3442標準）。
■Specificity:
☆Short taper mounting.
☆Steel body and suitable for higher rotation speed.
☆The model of the jaws are one-piece jaws and two-piece jaws for form A (conform to ISO3442standard).
|

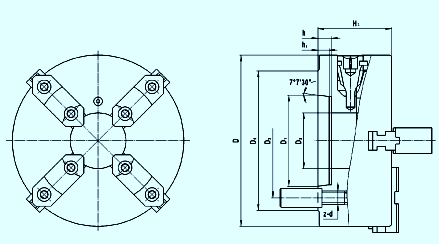

型號規格
Model
|
D
|
D1
|
D2
|
D3
|
D4
|
H1
|
h
|
h1
|
z-d
|
|
160/D4 160A/D4
|
160
|
63.513
|
82.6
|
40
|
117
|
74
|
13
|
10
|
3-M10×1
|
|
200/D5 200A/D5
|
200
|
82.563
|
104.8
|
50
|
146
|
86
|
15
|
12
|
6-M12×1
|
|
200/D6 200A/D6
|
200
|
106.375
|
133.4
|
65
|
181
|
86
|
16
|
13
|
6-M16×1.5
|
|
250/D6 250A/D6
|
252
|
106.375
|
133.4
|
70
|
181
|
91
|
16
|
13
|
6-M16×1.5
|
|
250/D8 250A/D8
|
252
|
139.719
|
171.4
|
80
|
225
|
96
|
18
|
14
|
6-M20×1.5
|
|
315/D8 315A/D8
|
315
|
139.719
|
171.4
|
103
|
225
|
102.5
|
18
|
14
|
6-M20×1.5
|
|
